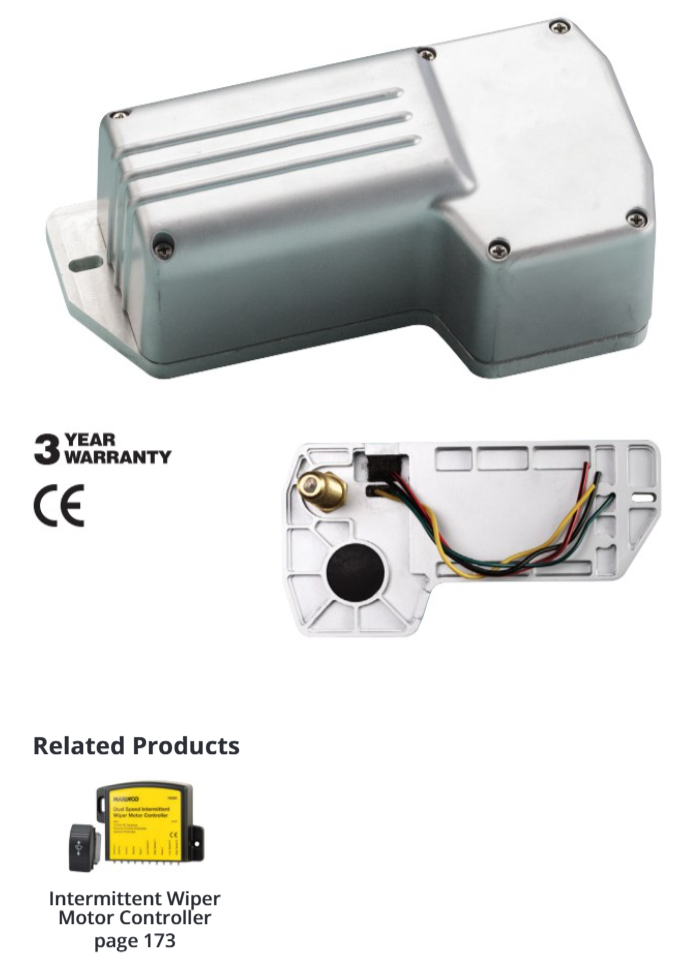

1.5 Waterproof Wiper Motor
• Fully sealed powder coated aluminum waterproof base and housing
• Powers a 22" Deluxe arm and 22" Deluxe blade combination
or a 20" Premier arm and 20" Deluxe blade combination

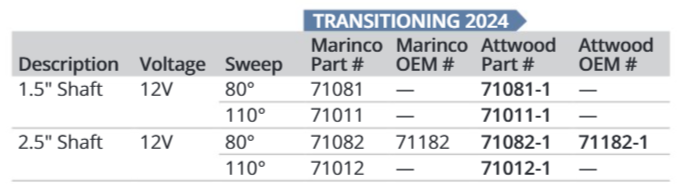

• Available in three (3) shaft lengths: 1.5" and 2.5"
(includes .5" length of knurled arm fitting)
• Factory pre-set sweep angles of 80° or 110°, with easy adjustment
to 45° or 60°
• Chrome plated solid brass knurled drive nut with brass
and stainless steel drive shaft
• Two-speed motor
• Sealed 6" wire leads, 16 AWG
• Adjustable right or left self parking
• .625" diameter shaft (16 mm)
• Available in 12V
• Coast to park
• RF shielded circuitry
• Retail version includes 5A fuse and holder
(operating switch not included)

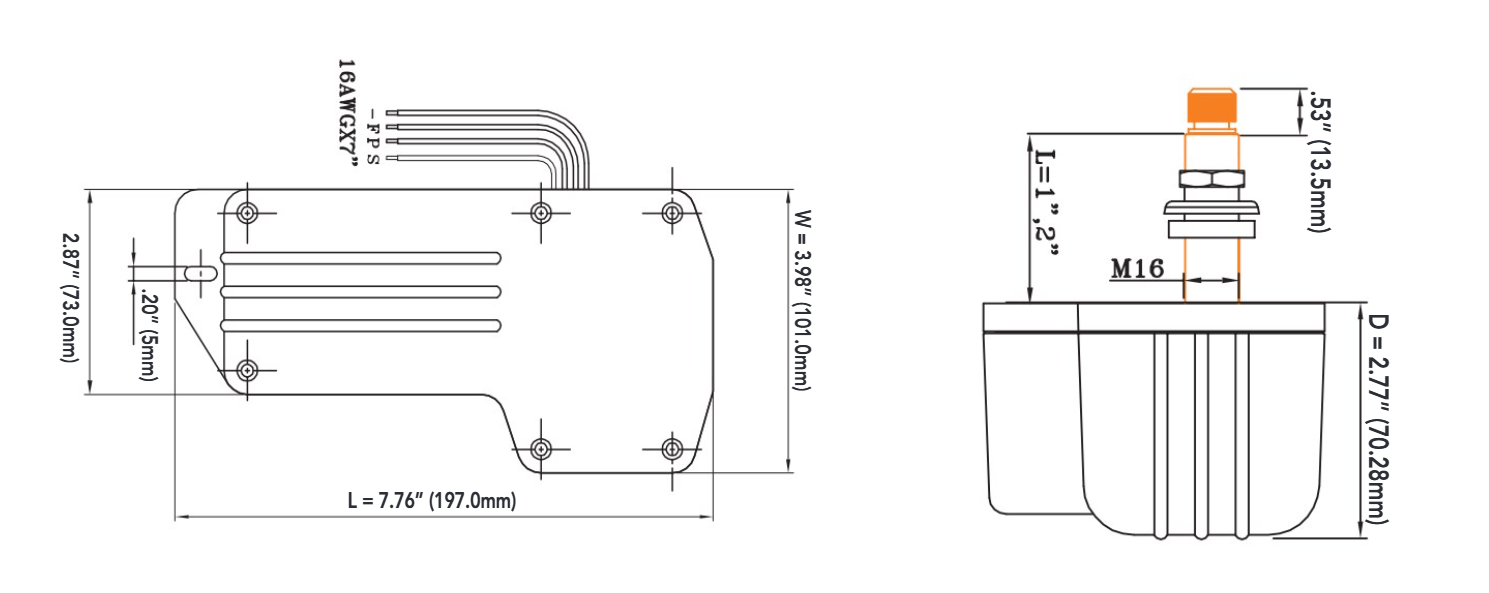

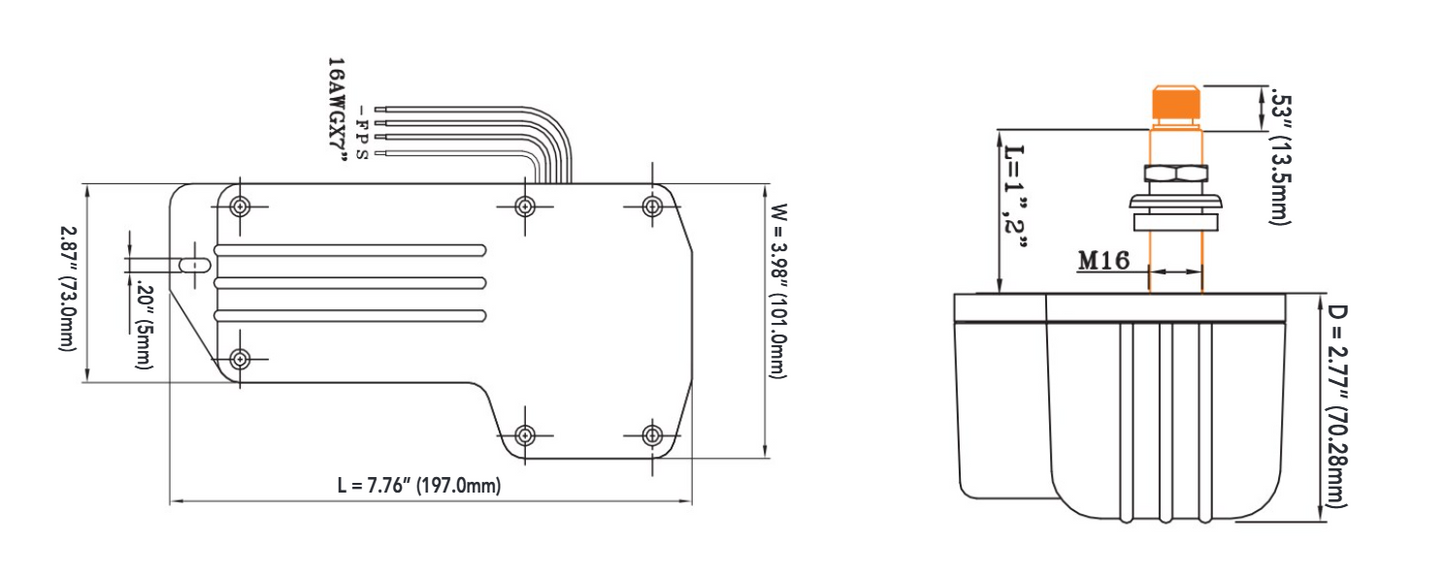

• Measures approximately 7.75" L x 4" W x 2.75" D
(see below for detailed dimensional drawings)
• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall current: 11.5A–13.0A
• No load current: 0.5A–1.2A
• Replaces AFI 2000 motor
