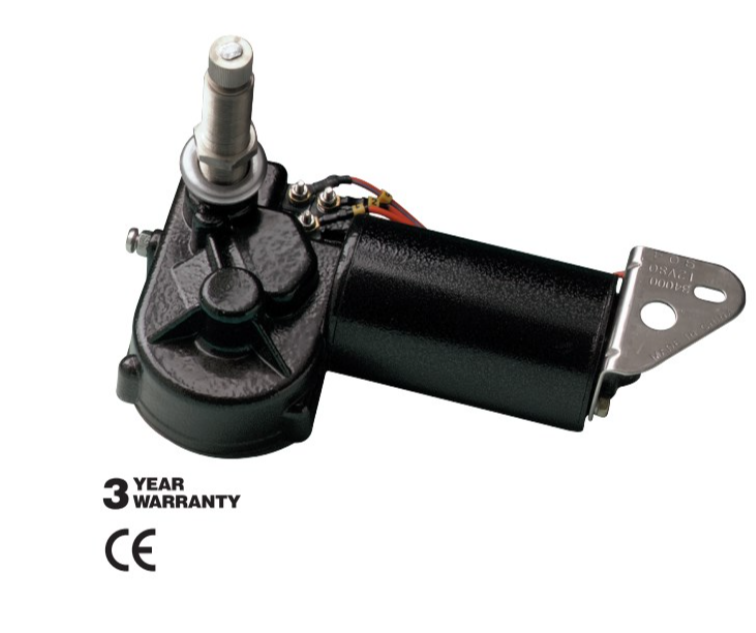

MRV Wiper Motor
• Easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20"
premier arm/blade combination at sweep sets of 80° or less
• Factory pre-set sweep of 80° or 110° adjustable from 40° to 110°
in 10° increments
• .625" diameter shaft (16 mm)

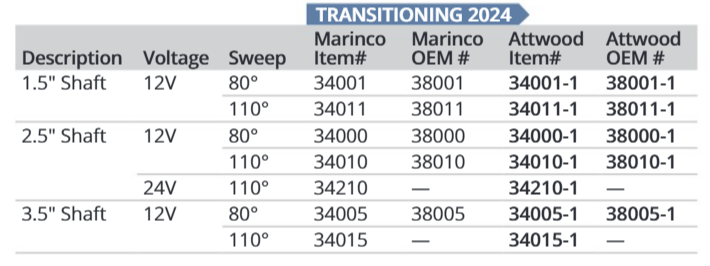

• Available in three (3) shaft lengths: 1.5", 2.5" and 3.5"
(includes .5" length of knurled arm fitting)
• Corrosion-resistant casing
• Heavy-duty motor with right angle drive
• Two-speed motor, can be operated as one speed
• Solid brass knurled drive nut with brass and stainless steel
drive shaft
• Adjustable right or left self parking, coast to park
• Retail version includes 5A fuse and holder
• Stainless steel fasteners and mounting bracket
• Use with three-position switch (not included)
• Compact size – 7.625" L x 4" W x 2" D
• Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
1.47” (37.38mm)
• Stall current: 11.5A–13.0A
• No load current: 0.5A–1.2A
