1000 Waterproof Wiper Motor
• Powers 18" Deluxe arm and 18" Deluxe blade combination
at sweep sets of 80° or less (not compatible with pantograph arms)
• Powers 16" Deluxe arm and 16" Deluxe blade combinations
at a sweep set of 110° (not compatible with pantograph arms)
• Factory pre-set sweep of 80° or 110° adjustable to
50°, 65°, 80°, or 110°
• .625" diameter shaft (16mm)
• Fully sealed waterproof housing made of UV stabilized,
high-temperature, high-impact thermoplastic
• 12V heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5A fuse and holder
(on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two (2) shaft lengths: 1.5" and 2.5"
(includes .5" length of knurled arm fitting)

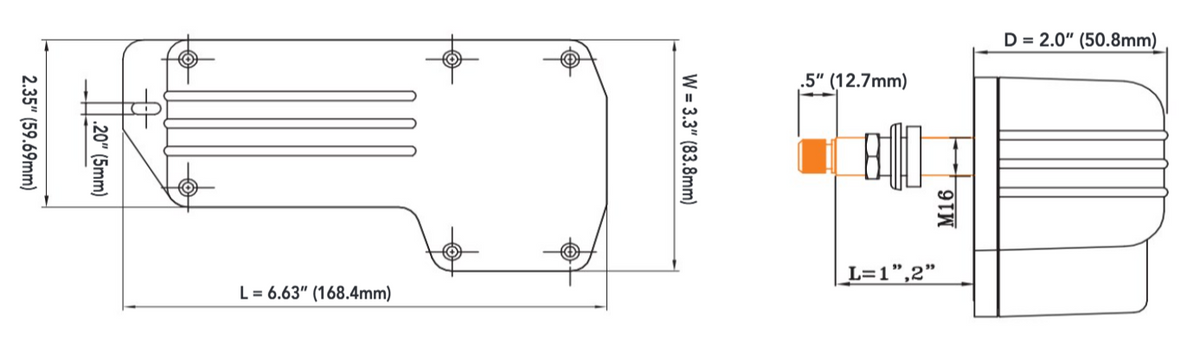

• Measures approximately 6.625" L x 3.375" W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8A-10.0A
• No load current: 0.8A-1.2A
