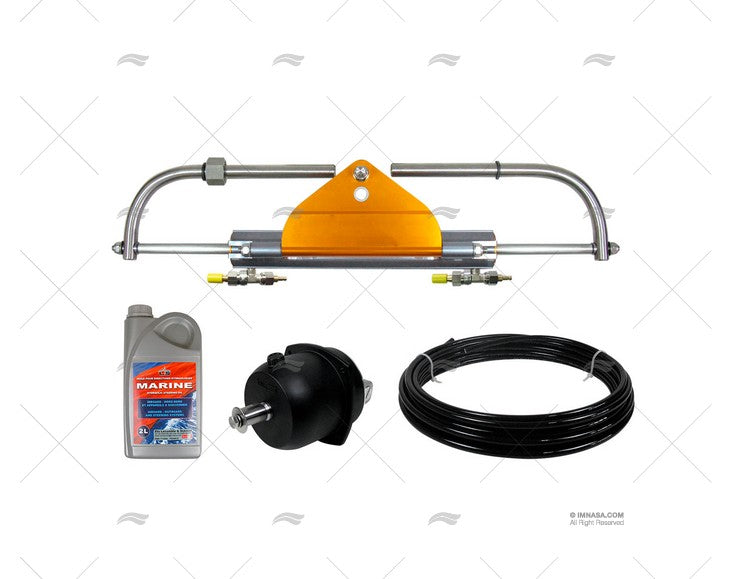

Lecomble & Schmitt LS 175 PRO hydraulic steering kit for outboard motors up to 175 HP (300 HP for dual engines in counter rotation). The number of turns from port to starboard is 5.3. Maximum speed is 40 knots. The kit includes a piston with fittings, a pump with fittings, 10m of hose and 2 liters of oil.

The horsepower of the VHM EX175 piston is 175Hp, with a volume of 137cm3. | The stroke of the cylinder by hydraulic pressure is 210mm. | The 26HB CAR hydraulic pump has a volume of 400 cm3 and a displacement of 26 cm3/rotation. | The maximum diameter of the steering wheel is 520 mm. | The length of the piping is 10m and its size should be at least 6mm.
