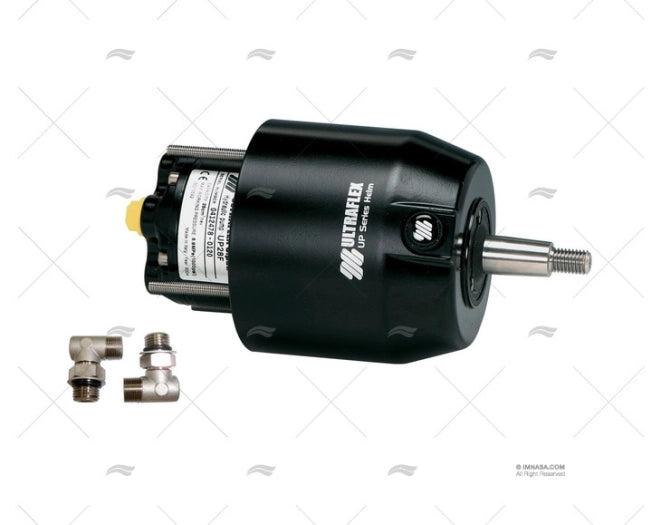

UP28F model hydraulic steering pump equipped with locking valves to prevent unintended engine movement when the helm is not being operated.
The maximum pressure exerted on the pump is up to 70 Bars, with a capacity of 28 cm3/revolution and a weight of 5kg. | It is equipped with a pressure relief valve to protect the circuit against abnormal pressure increases. | Contains a taper stainless steel shaft of 3/4" and includes 2 adjustable 90° fittings for the 3/8" hose. | Contains a square flange X64 or a round flange X57 to install the pumps in an intermediate position. | It has a tilting mechanism : X72 tilt range of 60° and five locking positions. | The maximum steering wheel diameter is 710mm.
