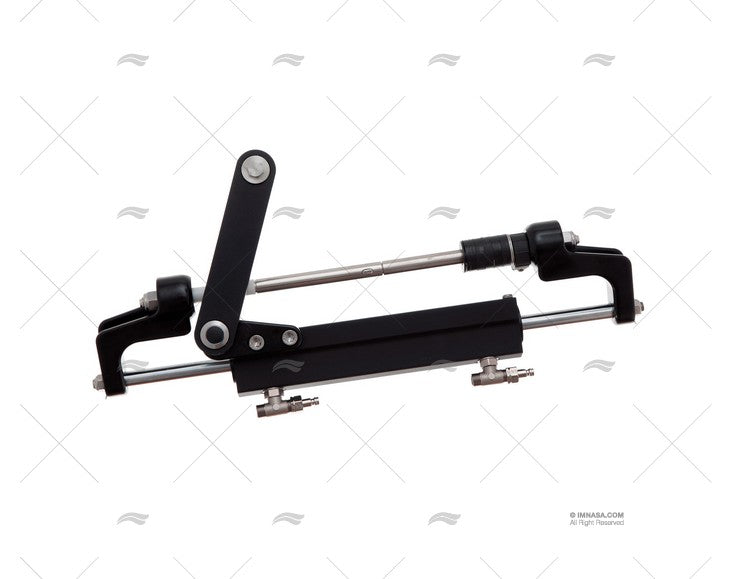

The UC95-OBF/1 hydraulic steering piston is recommended for use with outboard motors of 175 Hp and when the vessel's speed does not exceed 55 mph (48 knots), so it is not intended for use in competition applications.

The piston volume is 95 CC - 5.8 CU.IN . | Its stroke is 186 mm (7.3"), with an output force of 278 kg (613 IBS). | The internal diameter of the cylinder is 30 mm (1.18"). | Balanced: the number of turns from stop to stop is equal on port and starboard or vice versa. | Innovative design, with a split cylinder mounting rod, with pins for easy installation and with bushings to prevent friction with the motor tilt tube. | Contains adjustable pins for easy installation. | Stainless steel connecting bolt with high strength (ULTRABOLT). | Replaceable cylinder end caps.
